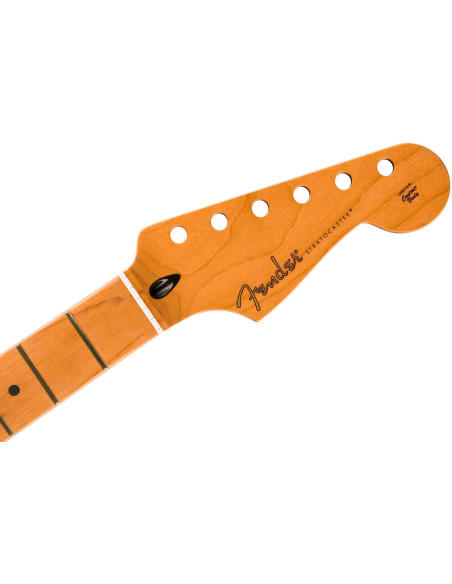

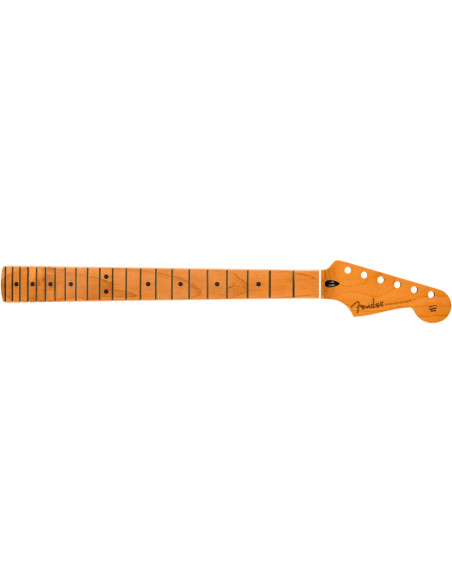

Fender® Stratocaster® Flat Oval Satin Roasted Maple Neck

Fender® Stratocaster® Flat Oval Satin Roasted Maple Neck

The Fender® Stratocaster® Flat Oval Satin Neck (part no. 0990492920) is designed as a modern, stable replacement for Strat-style builds. Made entirely from roasted maple, it offers increased dimensional stability thanks to the roasting process.

It features a Flat Oval neck profile and a roasted maple fingerboard with a 12" radius and rolled edges, providing a comfortable, modern playing surface. It includes 22 jumbo frets and a synthetic bone nut.

The neck has a satin urethane finish with a gloss headstock face. It uses a single action truss rod with head adjust. The tuner holes follow the dual guide pin Fender pattern and it mounts with a traditional 4-bolt configuration.

Key measurements include: 25.5" scale length, 1.6875" nut width, neck thickness of .820" at the 1st fret and .870" at the 12th fret, fret dimensions of .110" (height) × .055" (width), headstock thickness of .540", and tuner hole diameter of .397".

Technical Specifications

• Instrument: Stratocaster®
• Neck material: Roasted Maple
• Fingerboard material: Roasted Maple
• Neck shape: Flat Oval
• Number of frets: 22 Jumbo
• Fingerboard radius: 12"
• Position inlays: Black dots
• Nut material: Synthetic bone
• Nut width: 1.6875"
• Neck finish: Satin urethane with gloss headstock
• Truss rod: Single action, head adjust
• Truss rod nut: 3/16" hex
• Neck thickness 1st fret: .820"
• Neck thickness 12th fret: .870"
• Tuner mounting: Dual Guide Pin
• Headstock thickness: .540"
• Peg hole diameter: .397"
• Neck mounting: 4-bolt
• Scale length: 25.5"
• Part number: 0990492920
